DOUBLE COLUMN MECHANICAL PRESS WITH FRONT MOVABLE TABLE

Make: VORONEZ
Type: K4G 3539.01
New: 1991
Condition: never used, in Russia
Technical details
Slide effort at 12 mm to B.D.C.: 800 t

Slide stroke: 320mm
Max stroke of cushion plate:120mm
Total cushion effort: 80 t
Number of strokes: 25/19
Distance between bolster plate and slide: 650mm
Regulation of slide: 320mm
Table surface: 2500x1600
Slide width: 1400 mm
Thickness of the bolster plate 250 mm
Min motor power 90 kW
Weight: 95 t
Dimensions
Length 5050mm
Width 4200mm
Height over floor 6410 mm

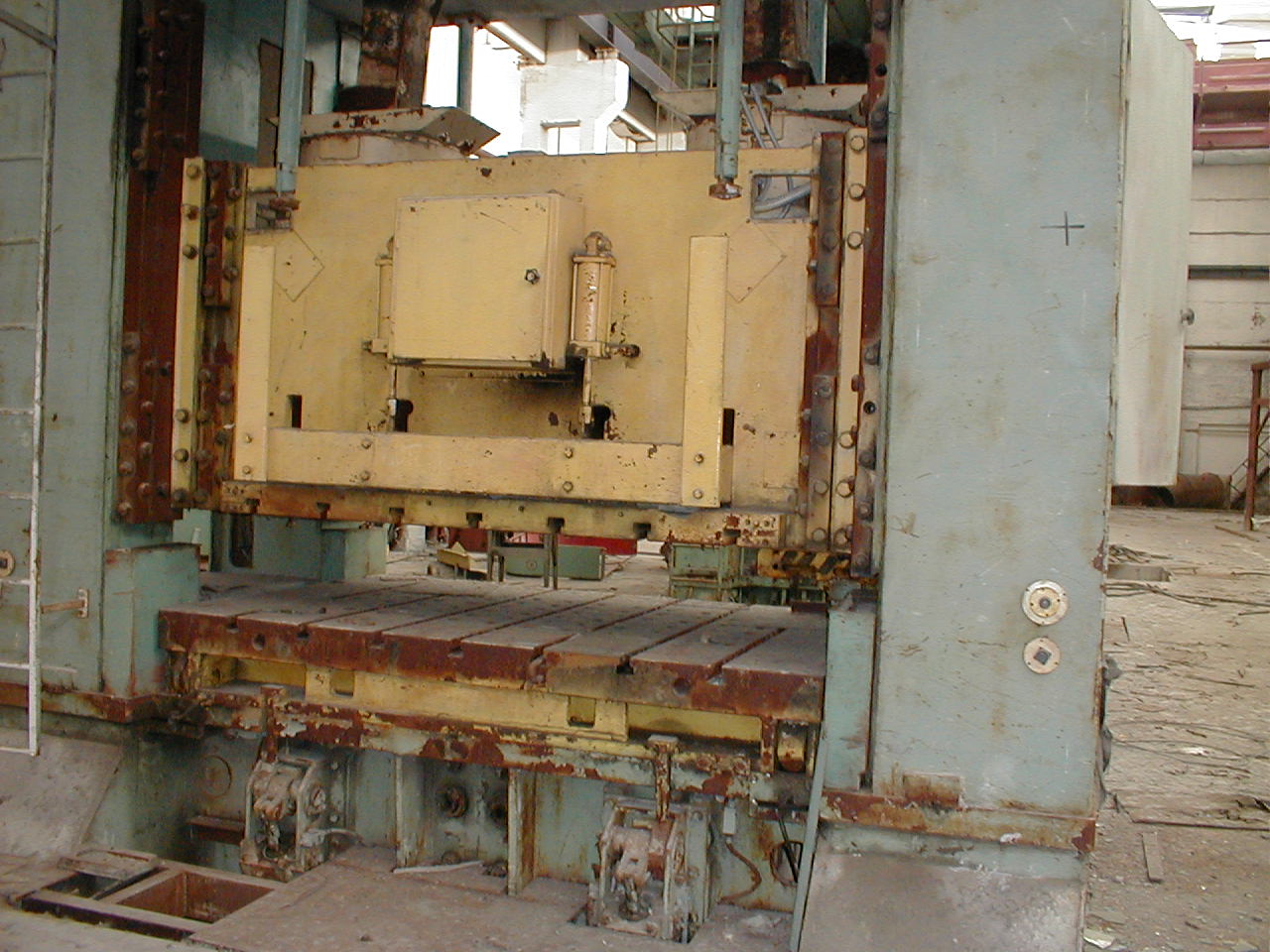

7-159b

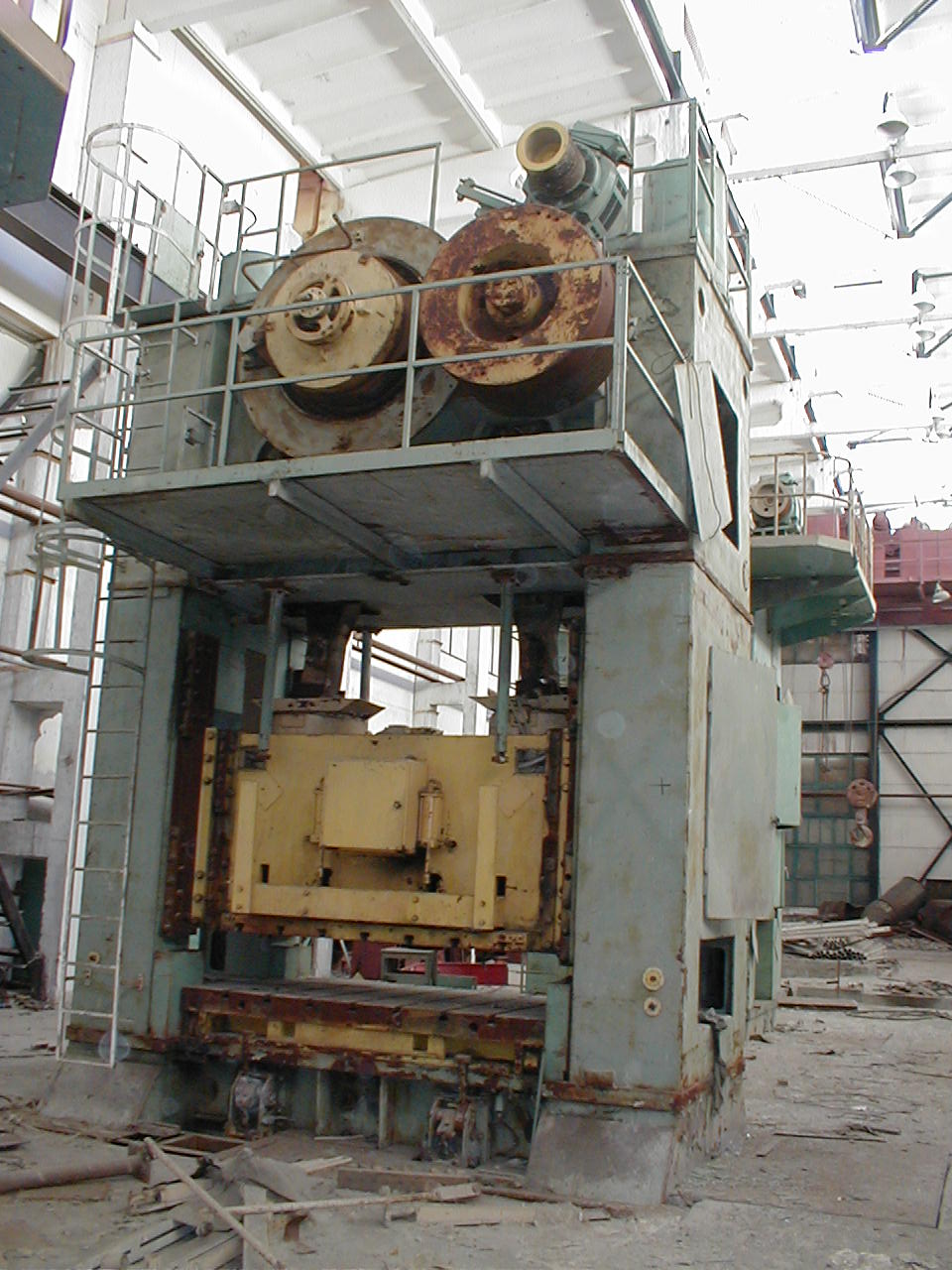

7-159
