DOUBLE COLUMN MILLING-AND-BORING MACHINE
Make: STANKO - Russia
Type: 6M612F11
New: 1989
Condition: not used, perfect condition, in our stock

Technical details
Table width 1250 mm
Length of table working surface 4000 mm
Table stroke 4 500 mm
Maximum weight of workpiece per 1 m of table length 5000 kg
Maximum distance from vertical spindle nose face to table working surface 1275 mm
Vertical head ram stroke 1000 mm
Distance from cross-rail to table working surface 1150 mm
Vertical head stroke over cross-rail 2800 mm
Distance between columns 1950 mm
Main motor power 45 kW
Spindle speed range 10-1600 rpm
Spindle nose taper ISO 60
Detachable facing head ISO 50

Feeding range:
table 4-3000 mm/min
vertical head 3-2500 mm/min
Machine weight 50 000 kg
Machine overall dimensions 12500x6500x5800 mm

Other information
The machine is gantry type with fixed cross rail, with one vertical head spindle stock

Accessories
incorporated angular head on the vertical support
ball screws in Y , Z axis
detachable face milling head

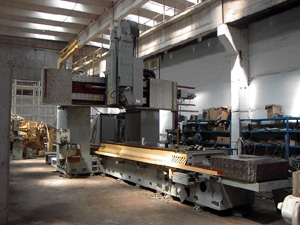

3-134

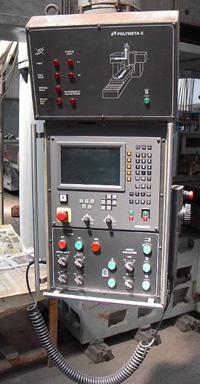

3-134a
