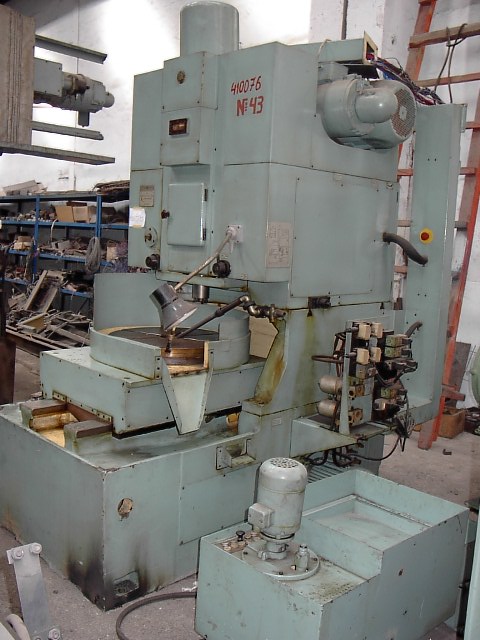

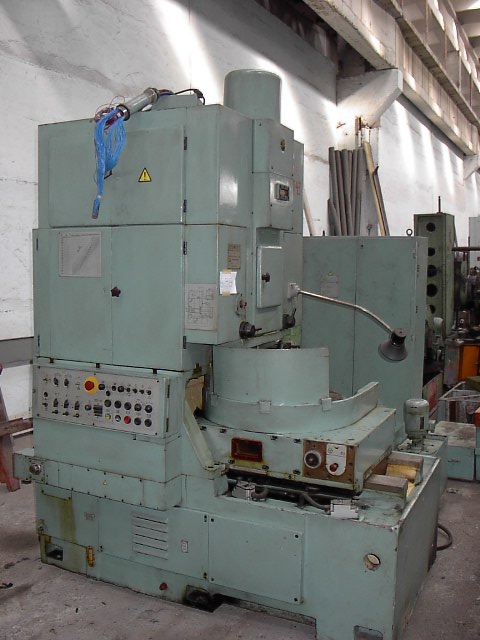

SEMI AUTOMATIC GEAR SHAPING MACHINE

Make: STANKO
Type: 5A140P
Condition: never used, in our stock

Technical details
Max gear dia 500mm
Max gear width 100mm
Max gear module 8 mm
Table dia 560mm
Spindle nose Morse 5
Distance between table surface and spindle nose max/min 270/120mm
Max spindle stroke 125 mm
Spindle travel 150 mm
Distance between spindle and table axes max/ min 355/0mm
Spindle double strokes range 55 to 560 dbl str/min
Max shaping tool dia 125mm
Rotary feeding range 6-590mm/min
Radial feed range 0,02-2mm/dbl str
Dimensions 1975x1660x2510mm
Weight 7500kg
Main motor power 7,5 kW

ACCESSORIES

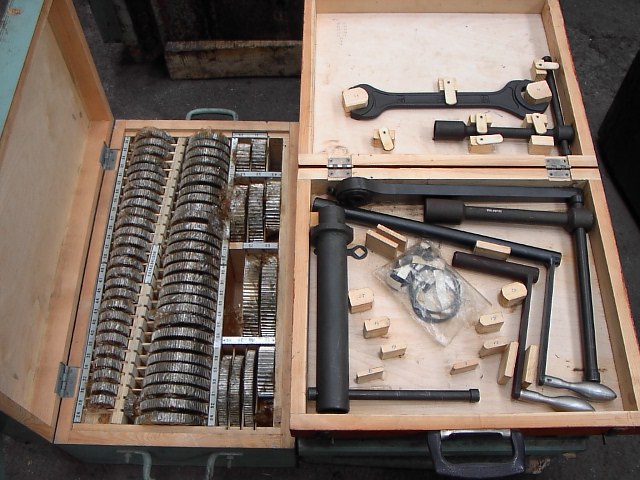

Set of changeable gears 68 pcs
operation manual in Russian
