SPLINE GRINDER
Make: STANKO -Russia
Type: 3M451
New: 1986
Condition: never used, like new, in our stock, under power

Technical details
Workpiece dia: 320mm

Grinding spindle shaft dia: 25 -125mm
Distance between centres: - 710mm
Grinding length: 560mm
Driving per splines No: 3-48
Main motor power: 3kW
Dimensions: 2600x1715x1900mm
Weight: 3370kg

Accessories
Center for the counter support 34512181 D 25-48 2 pcs
Cooling system with separator-1 set
Wheel dressing attachment by 3 dressers in one operation 1 set
Indexing disc mounted on the machine No 3451-84-77 Z48 N575
Supporting rest for work piece replacement
Plate N 3451 85 53
Plate N 3451 85 115

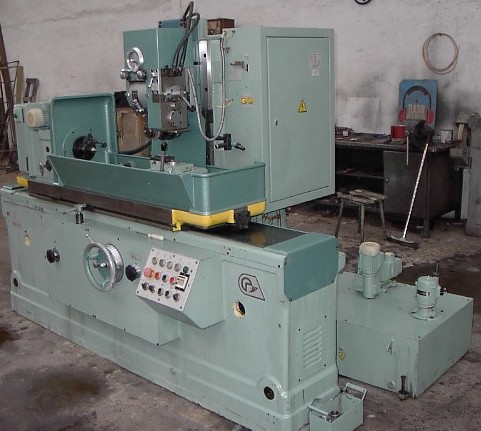

4-105

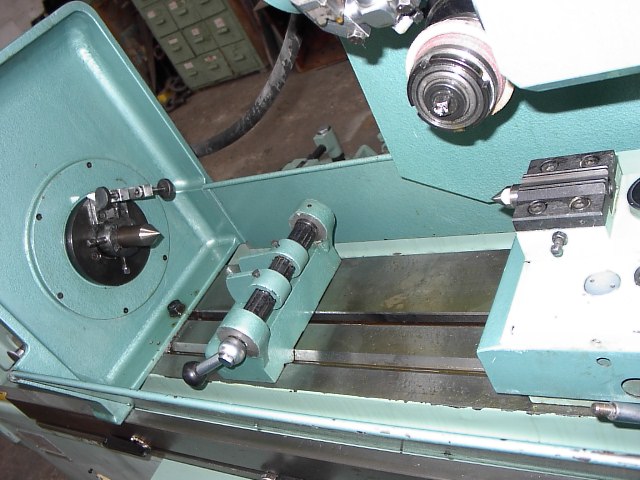

4-105c

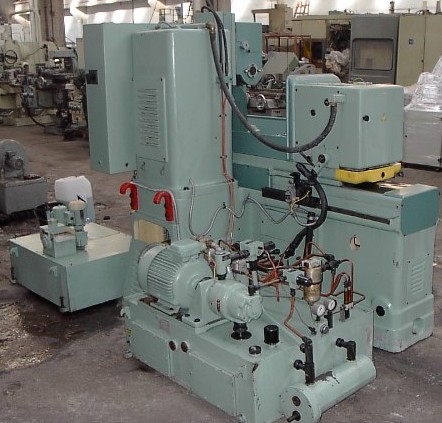

4-105b
