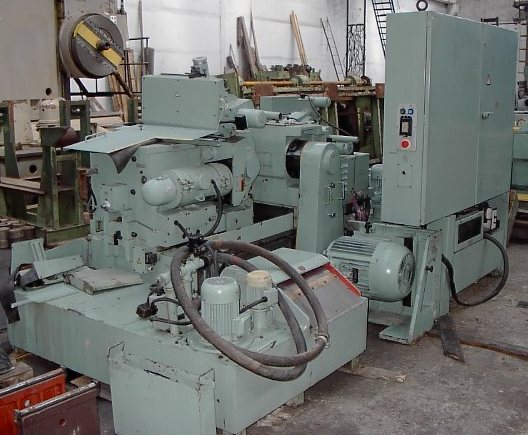

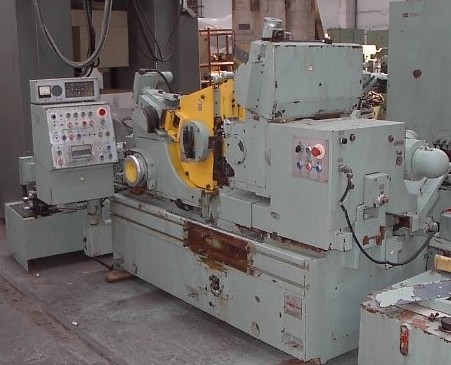

CENTERLESS GRINDING MACHINE

Make: STANKO -Russia
Type: 3E184B
New: 1988
Condition: not used, in our stock

Technical details
Max workpiece dia 125 mm
Diameter of grinding min/max 4/80 mm
Maximum length of workpiece
Through grinding:
Without special device 250 mm
With special device 1000 mm
In-feed grinding:
With nominal wheel height 155 mm
With maximum wheel height 245 mm

Wheel size
Grinding wheel 500x305x250 mm
Driving wheel 350x203x250 mm

Driving wheel speed
Working operation 12-150 rpm
Dressing operation 300 rpm
Total power of the electric motors installed 40.46 kW
Overall dimensions 3570x2355x2120 mm
Machine mass 6800 kg

Accessories
cooling system, loading & unloading
device, 3 pcs supporting knifes, balance stand
