CENTERLESS GRINDING MACHINE

Make: STANKO -Russia
Type: 3E183B
New: 1990
Condition: not used, in our stock

Technical details
Max workpiece dia 63mm
Diameter of grinding min/max 1,2/40 mm
Maximum length of workpiece
Through grinding
Without special device 140 mm
With special device 1000 mm

In-feed grinding
With nominal wheel height 95 mm
With maximum wheel height 155 mm
Wheel size
Grinding wheel 400x203x160 mm
Driving wheel 300x127x100 mm

Driving wheel speed
Working operation 15-150 rpm
Dressing operation 300 rpm
Total power of the motors installed 17,64 kW
Overall dimensions 2940x2150x2120 mm
Machine mass 6800 kg

Accessories
cooling system, loading & unloading device,
3 pcs supporting knifes

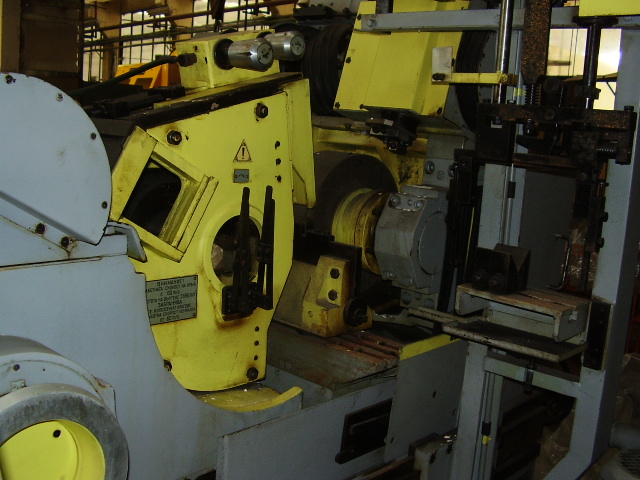

4-121a

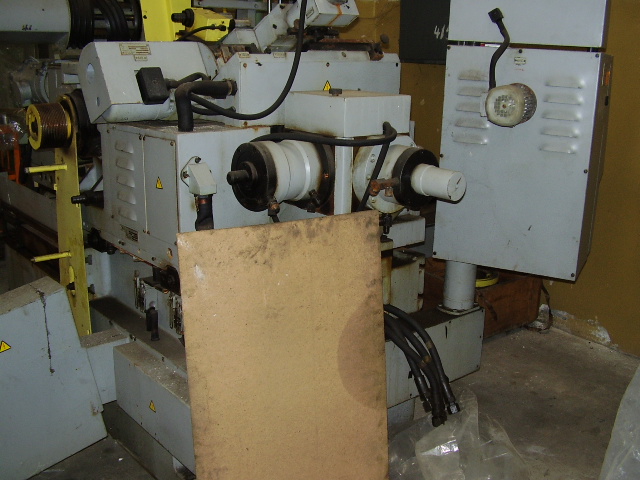

4-121b
