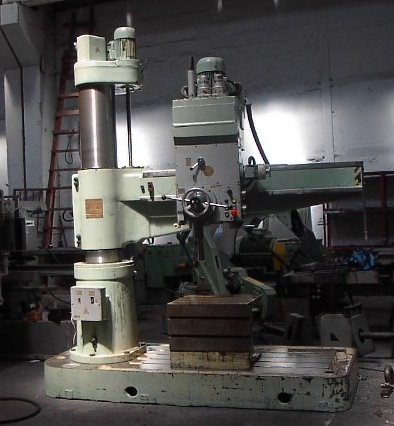

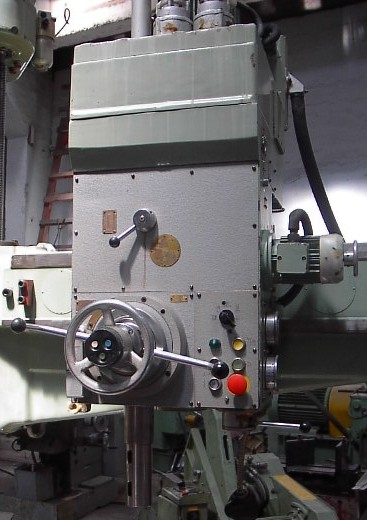

RADIAL DRILLING MACHINE

Make: STANKO -Russia
Type: 2A554
New: 1986
Condition: very little used, perfect condition, in our stock

Technical details
Conditioned Drilling capacity
In steel: 50mm
In cast iron: 63mm

Spindle overhang
Max 1600 mm
Min 375 mm
Max. weight of the instrument set
on the machine 15 kg
Distance from spindle nose

To working surface of table:
- Max. 1 600 mm
- Min. 450 mm
Spindle taper: MT5
Max spindle travel 400mm
Spindle speed range: 18-2000 rpm
Main motor power: 5,5kW
Dimension: 2850x1030x3430mm
Weight:
4 700kg
Accessories: cooling system, lighting, box table 600 x 500 x 500 mm
