ONE COLUMN VERTICAL LATHE

Make: Russia
Type: 1512
New: 1976
Condition: very good condition, new purchase

Technical details:
Max turning dia: 1 250 mm
Max turning height: 1 000 mm
Max workpiece weight: 4 000kg
Faceplate dia: 1120 mm
Faceplate speed range: 5 – 250 rpm; 18 steps
Main motor power: 30 kW
Weight about: 16 500 kg
Dimensions: 2 920 x 2 705 x 4100 mm

Max strokes
Upper support horizontal: 775 mm
Upper support vertical: 700 mm
Side support horizontal: 630 mm
Side support vertical: 1 000 mm
Feedings range: 0,03-12,5 mm/rev
Fast stroke: 2000 mm/min

Accessories:
Turret head of the vertical support, tool holders

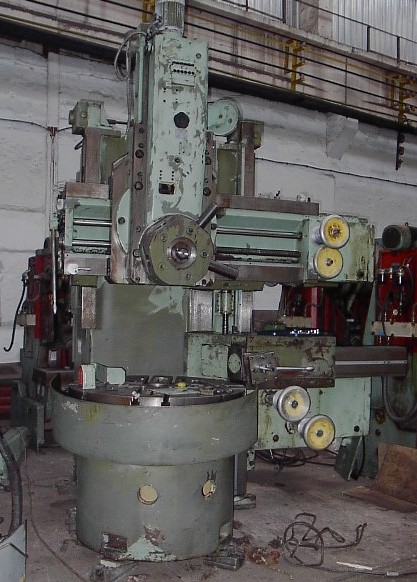

Note: The picture is of the machine “As is – where is - condition”.
We are going to transport the machine to our
stock for detailed inspection, necessary repairs and testing.
