ONE COLUMN VERTICAL LATHE

Make: Russia
Type: 1510
New: 1980
Condition: very good condition, new purchase

Technical details
Max turning dia: 1 000 mm
Max turning height: 800 mm
Max workpiece weight: 2 000kg
Faceplate dia: 900 mm
Faceplate speed range: 8 – 400 rpm; 18 steps
Main motor power: 22 kW
Weight about: 10 500 kg
Dimensions: 2 370 x 2 365 x 3 210 mm

Max strokes
Upper support horizontal: 700 mm
Upper support vertical: 630 mm
Side support horizontal: 550 mm
Side support vertical: 760 mm
Feedings range: 0,06- 6,3 mm/rev
Fast stroke: 1600 mm/min

Accessories
Turret head of the vertical support, tool holders

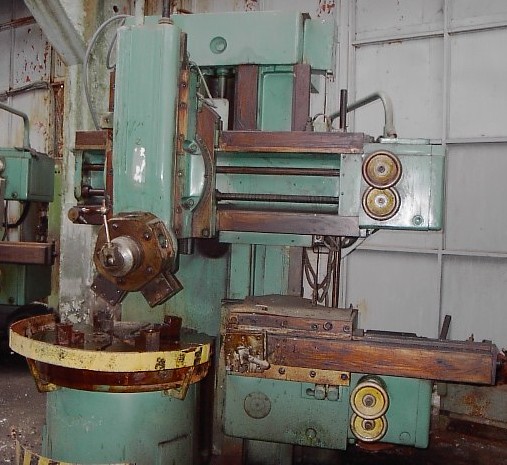

Note: The picture is of the machine “As is – where is - condition”. We are going to transport the machine to our stock for detailed inspection, necessary repairs and testing.
