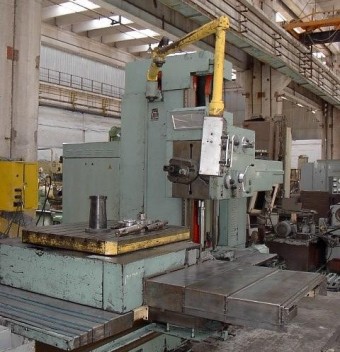

HORIZONTAL BORING MACHINE


Make: STANKO
Type: 2A622-1
New: 1978
Fa. No. 515

Condition: little used ,very good condition, in our stock, under reconditioning

Technical details:
Spindle dia: 110 mm
Spindle taper: 50 mm
Maximum weight of workpiece 4000 kg
Spindle speed range: 10-1250 rpm
Table surface: 1120
?1250 mm

Max. strokes:
- Spindle stroke (W): 710 mm
- Spindle stock stroke (Y): 1000 mm
- Longitudinal table stroke (Z):1000 mm
- Cross table stroke (X): 1250 mm

Feeding range: 2-2000 mm/min
Faceplate dia: 360 mm
Max traverses faceplate 100 mm
Faceplate speed range: 10-250 rpm / 15 steps
Max dia of hole to be bored 320 mm

Thread cutting range:

- metric 1-10 mm
-inch 4-20 winding in inch

AC Main motor power 11 kW
Total power: 25kW ,380 V/50 Hz
Weight: 17 000 kg
Overall dimensions: 6100 x 3950 x 3200 mm

Accessories:
Ball-screw in X/Y/Z axis
Detachable Face-Plate
DRO in 3 axes
Machine is equipped with DC motors in 2 axes X/B & Y/Z/W/U

A. Machine with original Russian Electric

B. The machine can be retrofitted in 4 ways:

1. -new electric cabinet with PLC control

   -new DC regulator for the available 2 pcs DC motors
   -new linear scales in 3 axes
   -new DRO with pre-setting

2. -new electric cabinet
   -new 2 pcs DC regulators and new DC feeding motors 4MTB 30NM
   -new linear scales in 3 axes
   -new Heidenhain TNC 320 control, 3 NC axes; 2D ( counter control )

3. -new electric cabinet
    -new 3 pcs DC regulators and new DC feeding motors 4MTB 30NM
    -new linear scales in 3 axes
    -new Heidenhain TNC 320 control, 3 NC axes; 3D ( counter control )

4. -new electric cabinet
    -new 3 pcs DC regulators and new DC feeding motors 4MTB 30NM
    -new linear scales in 3 axes and one rotary encoder for turning the table (B axis)
    -new Heidenhain TNC 320 control, 4 NC axes; 3D ( counter control )
